F1 Raptor was added to our line in 2019 as the first 3” FAT tire option in a budget platform. The F1 is our top model for the 750 Watt series and of course comes with all our quality components and features supporting a fantastic ride at a budget price! This includes our removable lithium battery (18Ah), oversized 110mm SR Suntour front suspension fork and Shimano hydraulic disc brakes!
Raptor comes with our all-in one motor system that offers a low prfole and no hassel format. This 1000 Watt motor has a built-in controller with 25 Amp performance. In addition, the F1 is primed and ready for several great factory upgrades including a color computer display which has lots of control features for speed, power levels and even cruise control, and several light kit options to choose from.
SO, for those who are looking for a little more solid mid-FAT tire ride at an affordable price, F1 Sabre is the model of choice with added performance and customizability!
- 48V Power System

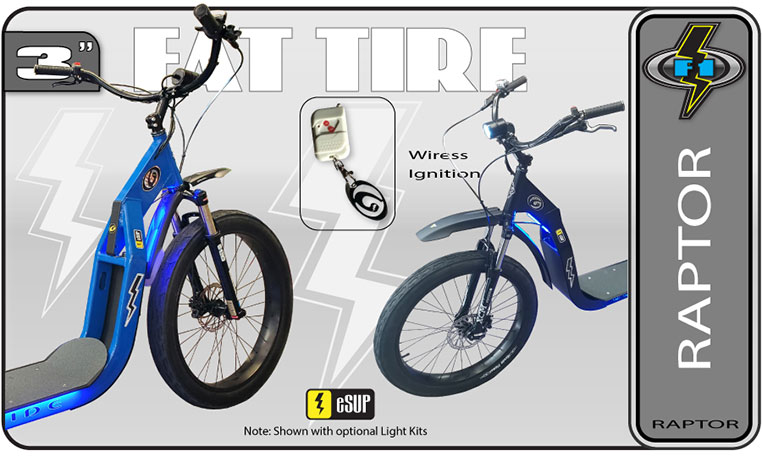

- Wireless Ignition System
- Air Ride Front Suspension
- 3" FAT Flame Road Tires
- QR Removable Thru Axle
- Integrated Rear Fender With MTX Cargo Rack
- MTX Bag or Basket Integration
- 6061 Aluminum Frame with 600lb + Capacity
- Heat-Teated Powder Coated Frame
- Adjustable Handlebar Stem
- 26" Front End For Forgiving Ride

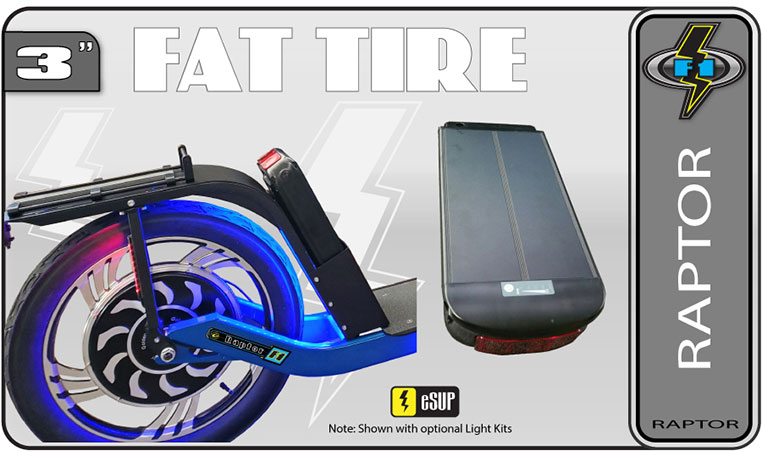

- Removable Lithium Battery for Counter-Top Charging
- 3A Quick-Charge Digital Charger
- Optional Digital Control Panel
- Programmable Speed and Power Variables
- Cruise Control Options
- Easy-Glide Thumb Throttle
- Shimano Hydraulic Disc Brakes
- 203mm Rear Roter for Max Stopping
- 180mm Front Rotor for Balanced Stopping
- Non-Skid Oversized Footboard Deck
- 12V Parallel Wiring for Light System
- Optional 900 Lumen LED Head Light Kit
- Optional LED Strip Tail Lights Kit
- Optional LED Strip Light Accent Kit
- Optional 20Ah Lithium Battery - up to 30 Mile Range
| Motor |
|
| Volts |
48V |
| Watts |
750W |
| Type |
Brushless |
| Geared |
No |
| Max Speed |
22 MPH |
| Controller |
|
| Type |
Digital |
| Volts / Watts |
48V / 750 Watts |
| Max Current |
25 Amps |
| Computer Display |
|
| BAC-601 |
Multi-Function - Speed, Power Settings |
| Wheels / Tires |
|
| Wheels |
26x3" Front, 20x3" Rear |
| Tires |
26" Front, 20" Rear, 3" Street |
| Body |
|
| Length |
87 in. |
| Width |
28 in. |
| Height |
50 in. |
| Wheelbase |
63 in. |
| Maximum payload |
600+ lbs |
| Curb weight |
77.5lbs |
| Battery |
|
| Type |
Lithium Ion |
| Charge Capacity |
18Ah |
| Riding Range |
22-24 Miles |
| Time to Charge |
3-4 Hours From Empty |
| LIGHT KITS |
|
Under-carriage Kit - L1  |
LED Strip Light Kit Installed - $195 |
Full Lights Kit - L2  + |
Front/Rear Running lights + Under-carriage Kits Installed - $325 |
| BATTERY UPGRADES |
|
48V - 18Ah to 20Ah Lithium  |
Lithium - $275 |
| COMPUTER UPGRADE |
|
Computer Display  |
BAC-601 - $135 |
| FRAME COLOR UPGRADE |
|
Custom Frame COlor  |
Powder-Coat / Heat-treat Custom Frame Color - $375 |
| CARGO OPTIONS |
|
Cargo Flatbed Trailer  |
125 LB Capacity, $325 |
MTX Zipper Trunk Bag  |
2 Versions From $49.95 |
MTX Wire Basket |
1 Model - $29.95 |
| LIGHT KIT |
|
| Trailer Light Kit |
Requires L1 or L2 Light Kit pre-Installed - $125 |
| HELMET |
|
Kali Unisex  |
3 Sizes - $25 |
| EXTRA BATTERIES |
|
| 48V - 18Ah Lithium |
Lithium - $775 |
48V - 20Ah Lithium  |
Lithium - $875 |
